KPL
They are characterized by a departure from traditional opening systems in order to comply with Eurocode requirements where one of the most important things is to maintain minimum spacing and distances between nails. They have a wide range of well thought-out opening systems so that they can be used both in standard solutions and individually designed connectors. KPL angles are made of thinner material which is the result of work on obtaining a better compromise between price and strength.
KPL details

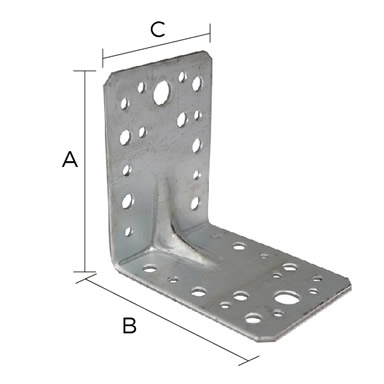

| CODE | A | B | C | g | Φ5 | Φ7 | Φ11 | Φ14 | |

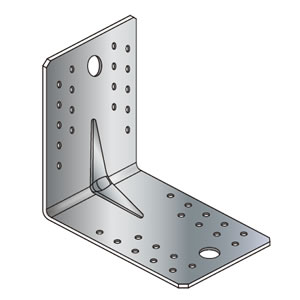

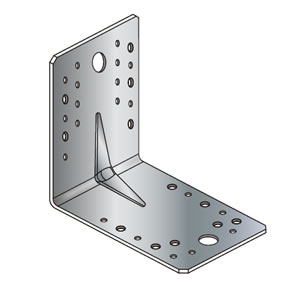

![]() | KPL1 | 90 | 90 | 65 | 2.0 | 16 | 12 | 2 | - |
![]() | KPL2 | 105 | 105 | 90 | 2.0 | 36 | - | - | 2 |
